Prosec Panel | Detectors

Detectors

PPS-1 Passive Infrared Motion Detector

It has digital design and smart software that provides perfect detection in all conditions, completely eliminating the possibility of false alarms. Its plastic box and electronic board are completely lead-free. It has a semiconductor relay that is not misled by physical effects such as magnets. Suitable for corner mounting with standing or direct mounting. It can measure the ambient temperature with its temperature sensor. Low battery consumption, it lasts longer when the electricity of the alarm panel is cut off.

Detection Distance: 10 m
Alarm Period: 3 second
Supply: 9 - 16 VDC, 13 mA (@12V)
Alarm Output: N.C. 30VDC, 0.1A maks. semiconductor relay
Sensitivity Adjustment: 3 Levels; Low, Medium, High
Tamper Switch: Activates when the cover is opened or removed from the wall.
Activation Led: Red (Can be Passed)
Detectable Speed: 0.3 ~ 1.5 m / second
Moisture: 95% RH (max)
Heat: -20 C ~ 45 C

PMW-1 Passive Infrared + Microwave Motion Detector

It can detect perfectly with dual sensors. 4 different operations as PIR only, PIR and MW, PIR or MW, MW only It has mode. It has digital design and smart software that provides perfect detection in all conditions, completely eliminating the possibility of false alarms. Its plastic box and electronic board are completely lead-free. It has a semiconductor relay that is not misled by physical effects such as magnets. Suitable for corner mounting with standing or direct mounting. It can measure the ambient temperature with its temperature sensor. Low battery consumption, it lasts longer when the electricity of the alarm panel is cut off.

Detection Distance: 10 m
Microwave Sensor: 10.525GHZ Doppler Radar Sensor
Alarm Period: 3 second
Supply: 9 - 16 VDC, 13 mA (@12V)
Alarm Output: N.C. 30VDC, 0.1A semiconductor relay
Sensitivity Adjustment: 3 Levels; Low, Medium, High
Tamper Switch: Activates when the cover is opened or removed from the wall.
Activation Led: Red (Can be Passed)
Detectable Speed: 0.3 ~ 1.5 m / second
Moisture: 95% RH (max)
Heat: -20 C ~ 45 C

PWP-41 Wireless PIR

It has a 12-meter detection capacity and a battery life of 3 - 5 years with CR123 battery. Wireless PIR detector compatible with Prosec P8 series It can be easily managed and sensitivity settings can be made via the keypad. It has easy installation.

WMK-4 Wireless Magnetic Contact

Compatible with Pro-K3 keypad and PWR-1 wireless receiver. It can be managed via the keypad and has an easy setup.

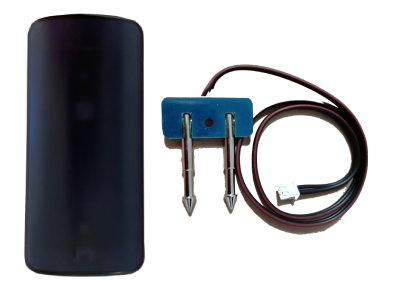

DSB-1 Water Detector

You can monitor flooding alarms with the steering wheel Flood Detector, which is compatible with all alarm systems. It can be used together with the alarm panel, it can also be used alone. It generates light and audible alarms.
